Tube Fittings (Double Ferrule)卡套式管接头
卡套式管接头Tube Fittings (Double Ferrule)
High-pressure double ferrule compression tube fittings for instrumentation and process tubing systems.用于仪表和工艺管道系统的高压双卡套压缩式管接头。
Available Configurations
可选型号配置
| Image | 图片 | Model Code | 型号代码 | Type | 类型 | Description | 说明 |
|---|---|---|---|---|---|---|---|
 | SK6 | Union | 直通接头 | ||||
 | SK6R | Reducing Union | 变径直通接头 | ||||
 | SK61 | Bulkhead Union | 穿板直通接头 | ||||

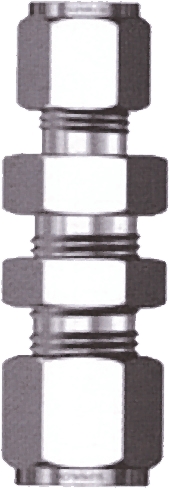

 | SK61R | Reducing Bulkhead Union | 变径穿板直通接头 | ||||
 | SK1N | Male Connector (NPT) | 外螺纹终端接头 (NPT) | ||||
 | SK1R | Male Connector (BSPT) | 外螺纹终端接头 (BSPT) | ||||
 | SK1G | Male Connector (ISO/BSP) | 外螺纹终端接头 (ISO/BSP) | ||||
 | SK1OG | Male Connector with O-ring (ISO/BSP) | O型圈密封外螺纹终端接头 | ||||
 | SK7N | Female Connector (NPT) | 内螺纹终端接头 (NPT) | ||||
 | SK7R | Female Connector (BSPT) | 内螺纹终端接头 (BSPT) | ||||
 | SK7G | Female Connector (ISO/BSP) | 内螺纹终端接头 (ISO/BSP) | ||||
 | SK11 | Bulkhead Male Connector | 穿板外螺纹接头 | ||||
 | SK71 | Bulkhead Female Connector | 穿板内螺纹接头 | ||||
 | SK2 | Male Elbow | 外螺纹弯头 | ||||
 | SK3 | Union Tee | 三通接头 | ||||
 | SK3R | Reducing Union Tee | 变径三通接头 | ||||
 | SK4 | Union Cross | 四通接头 | ||||
 | SK5 | 45° Male Elbow | 45°外螺纹弯头 | ||||
 | SK5ST | 45° Positionable Male Elbow | 45°可调外螺纹弯头 | ||||
 | SK2ST | 90° Positionable Male Elbow | 90°可调外螺纹弯头 | ||||
 | SK8 | Female Elbow | 内螺纹弯头 | ||||
 | SK9 | Union Elbow | 直通弯头 | ||||
 | SKR | Reducer | 变径接头 | ||||

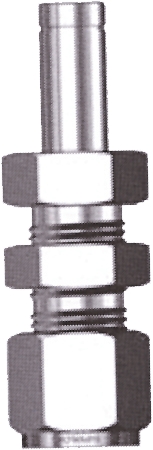

 | SKR1 | Bulkhead Reducer | 穿板变径接头 | ||||
 | SKAM | Male Adapter | 外螺纹转接头 | ||||
 | SKAF | Female Adapter | 内螺纹转接头 | ||||
 | SKC | Cap | 堵头 | ||||
 | SKP | Plug | 螺塞 | ||||
 | SKPC | Port Connector | 端口接头 | ||||
 | SKRPC | Reducing Port Connector | 变径端口接头 | ||||
 | SK-FW | Flange Connector | 法兰接头 | ||||
 | SK1-CH | Weld Connector | 焊接接头 | ||||
 | SKTFT | Female Branch Tee | 内螺纹分支三通 | ||||
 | SKTMT | Male Branch Tee | 外螺纹分支三通 | ||||
 | SK02 | Tube End Plug | 管端堵头 | ||||
 | SK04 | Tube End Cap | 管端帽 |
Other configurations and special materials available upon request. 其他配置和特殊材料可按需定制。
Product Description
产品描述
The HTG-SK (SKLOK) series double ferrule tube fittings are precision-engineered for leak-tight connections in high-pressure, high-vibration, and vacuum applications. Manufactured to exacting standards with state-of-the-art CNC equipment, these fittings feature a two-ferrule design that ensures consistent sealing and tube grip across a wide range of tubing materials and wall thicknesses. Each fitting undergoes stringent testing for pressure, impulse, vibration, vacuum, and temperature extremes.
The HTG-SK (SKLOK) series double ferrule tube fittings are precision-engineered for leak-tight connections in high-pressure, high-vibration, and vacuum applications. Manufactured to exacting standards with state-of-the-art CNC equipment, these fittings feature a two-ferrule design that ensures consistent sealing and tube grip across a wide range of tubing materials and wall thicknesses. Each fitting undergoes stringent testing for pressure, impulse, vibration, vacuum, and temperature extremes.
Key Features
主要特点
- Double ferrule compression design for reliable leak-tight seal
- Wide range of configurations: unions, elbows, tees, crosses, connectors
- Available in inch and metric sizes from 1/16" to 2" (2mm to 32mm)
- Multiple body materials: 316SS, 304SS, Brass, Alloy 400, Titanium, PTFE
- Repeatable disassembly and reassembly without loss of seal integrity
- Inspection gauge system for verified proper installation
- Double ferrule compression design for reliable leak-tight seal
- Wide range of configurations: unions, elbows, tees, crosses, connectors
- Available in inch and metric sizes from 1/16" to 2" (2mm to 32mm)
- Multiple body materials: 316SS, 304SS, Brass, Alloy 400, Titanium, PTFE
- Repeatable disassembly and reassembly without loss of seal integrity
- Inspection gauge system for verified proper installation
Typical Applications
典型应用
- Petrochemical processing instrumentation
- Power generation fluid systems
- Nuclear facility control lines
- Offshore and onshore oil & gas platforms
- Chemical plant process monitoring
- Hydraulic and pneumatic control panels
- Petrochemical processing instrumentation
- Power generation fluid systems
- Nuclear facility control lines
- Offshore and onshore oil & gas platforms
- Chemical plant process monitoring
- Hydraulic and pneumatic control panels
Available Materials
可选材料
Technical Specifications
技术规格
| Model Series | 型号系列 | HTG-SK |
| Size Range | 尺寸范围 | 1/16" – 2" (2mm – 32mm) |
| Pressure Rating | 压力等级 | Up to 12,000 psi (dependent on tubing size & wall) |
| Temperature Range | 温度范围 | -20°F to 1200°F (-29°C to 649°C) |
| Materials | 材料 | 316 Stainless Steel, 304 Stainless Steel, Brass, Alloy 400/Monel, Alloy C-276, Titanium, PTFE |
| Category | 类别 | Fittings & Connectors管件与接头 |
