Instrument Auxiliary Vessel仪表辅助容器
仪表辅助容器Instrument Auxiliary Vessel
Condensate pots, seal chambers, air traps, and other auxiliary vessels for instrumentation protection.Condensate pots, seal chambers, air traps, and other auxiliary vessels for instrumentation protection.
Available Configurations
可选型号配置
| Image | 图片 | Model Code | 型号代码 | Type | 类型 | Description | 说明 |
|---|---|---|---|---|---|---|---|

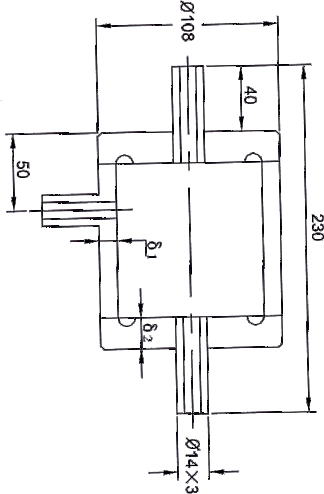

 | FG01 | Condensate Pot | 冷凝容器 | ||||

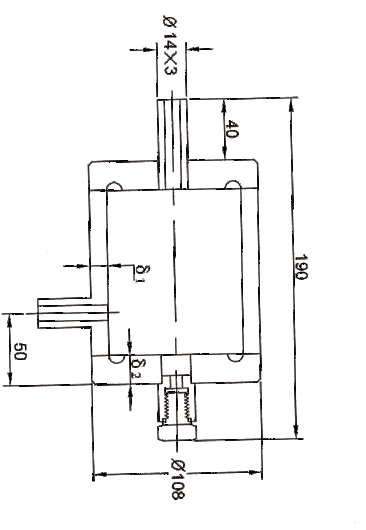

 | FG02 | Condensate Pot | 冷凝容器 | ||||
 | FG03 | Condensate Pot | 冷凝容器 | ||||

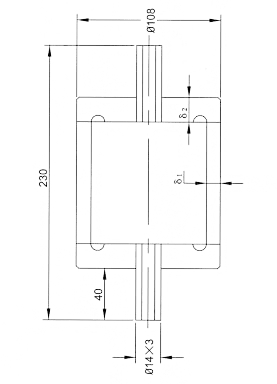

 | FG04 | Separation container | 分离容器 | ||||
 | FG05 | Isolation container | 隔离容器 | ||||
 | FG06 | Separation container | 分离容器 | ||||
 | FG07 | Separation container | 分离容器 | ||||

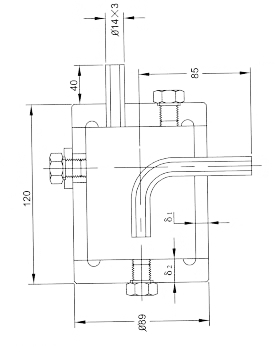

 | FG08 | Isolation container | 隔离容器 | ||||
 | FG09 | Isolation container | 隔离容器 | ||||

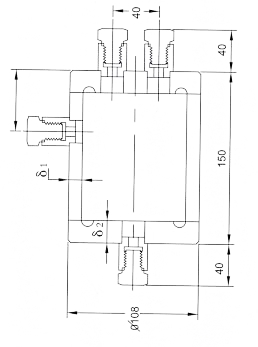

 | FG10 | Isolation container | 隔离容器 | ||||
 | FG11 | Isolator | 隔离器 | ||||
 | FG12 | Syphon container | 虹吸容器 | ||||

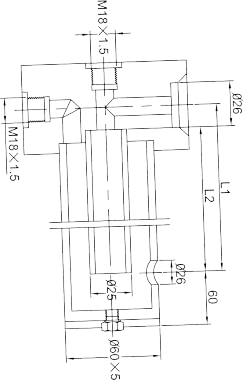

 | FG15 | Double-room balancer | 双室平衡容器 | ||||
 | FG20 | High-pressure container | 高压容器 | ||||
 | FG21 | Accessory for Condensate Pot | 冷凝容器组件 | ||||
 | FG22 | Accessory for isolation container | 隔离容器组件 | ||||

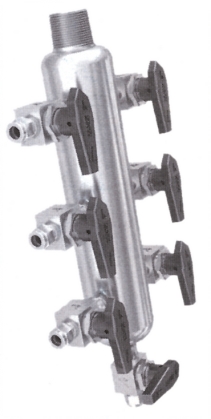

 | JFQ-I | Air Distributor | 气源分配器 | ||||
 | JFQ-II | Air Distributor | 气源分配器 | ||||
 | JFQ-III | Air Distributor | 气源分配器 | ||||
 | JFQ-IV | Air Distributor | 气源分配器 |
Other configurations and special materials available upon request. 其他配置和特殊材料可按需定制。
Product Description
产品描述
The HTG-FG series instrument auxiliary vessels include condensate pots, seal chambers, air traps, snubbers, and pulsation dampeners that protect and enhance the performance of pressure, flow, and level instrumentation. These vessels provide thermal isolation, fluid separation, pulsation dampening, and condensate collection to ensure accurate measurement under challenging process conditions.
The HTG-FG series instrument auxiliary vessels include condensate pots, seal chambers, air traps, snubbers, and pulsation dampeners that protect and enhance the performance of pressure, flow, and level instrumentation. These vessels provide thermal isolation, fluid separation, pulsation dampening, and condensate collection to ensure accurate measurement under challenging process conditions.
Key Features
主要特点
- Condensate pots for steam and high-temperature pressure measurement
- Seal chambers for corrosive, viscous, or solidifying process fluids
- Air traps for liquid-free pneumatic signal transmission
- Pulsation dampeners for reciprocating pump/compressor service
- Full compliance with ASME B31.1/B31.3 and PED requirements
- Condensate pots for steam and high-temperature pressure measurement
- Seal chambers for corrosive, viscous, or solidifying process fluids
- Air traps for liquid-free pneumatic signal transmission
- Pulsation dampeners for reciprocating pump/compressor service
- Full compliance with ASME B31.1/B31.3 and PED requirements
Typical Applications
典型应用
- Steam pressure and flow measurement
- Corrosive chemical process isolation
- Slurry and high-viscosity fluid service
- Compressor and pump discharge pulsation control
- Level measurement stilling wells and bridles
- Steam pressure and flow measurement
- Corrosive chemical process isolation
- Slurry and high-viscosity fluid service
- Compressor and pump discharge pulsation control
- Level measurement stilling wells and bridles
Available Materials
可选材料
Technical Specifications
技术规格
| Model Series | 型号系列 | HTP-FG |
| Size Range | 尺寸范围 | Custom capacities: 100cc to 20L |
| Pressure Rating | 压力等级 | Up to Class 2500 |
| Temperature Range | 温度范围 | -325°F to 1200°F (-198°C to 649°C) |
| Materials | 材料 | 316 Stainless Steel, 304 Stainless Steel, Carbon Steel, Alloy 400, Alloy C-276 |
| Category | 类别 | Manifolds & VesselsManifolds & Vessels |
