Instrument Manifolds仪表阀组
仪表阀组Instrument Manifolds
2-way, 3-way, and 5-way instrument manifolds for differential pressure transmitters and gauge installations.2-way, 3-way, and 5-way instrument manifolds for differential pressure transmitters and gauge installations.
Available Configurations
可选型号配置
| Image | 图片 | Model Code | 型号代码 | Type | 类型 | Description | 说明 |
|---|---|---|---|---|---|---|---|

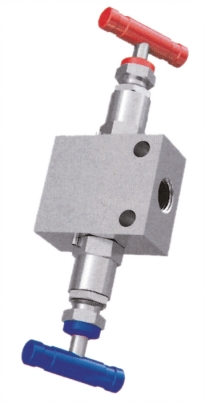

 | JFG2A | 2-Valve Manifold (Block & Bleed) | 二阀组 (截止+排放) | ||||
 | JFG2B1 | 2-Valve Manifold (Block & Bleed, Flanged) | 二阀组 (法兰式) | ||||
 | JFG3A1 | 3-Valve Manifold (Standard) | 三阀组 (标准型) | ||||
 | JFG3A3 | 3-Valve Manifold (Flanged × Flanged) | 三阀组 (法兰×法兰) | ||||
 | JFG3B1 | 3-Valve Manifold (Block & Bleed, Flanged) | 三阀组 (截止+排放, 法兰式) | ||||
 | JFG3C1 | 3-Valve Manifold (Compact) | 三阀组 (紧凑型) | ||||
 | JFG3T | 3-Valve Manifold (Threaded) | 三阀组 (螺纹式) | ||||
 | JFG5A1 | 5-Valve Manifold (Standard) | 五阀组 (标准型) | ||||
 | JFG5A2 | 5-Valve Manifold (Flanged) | 五阀组 (法兰式) | ||||
 | JFG5C1 | 5-Valve Manifold (Compact) | 五阀组 (紧凑型) | ||||
 | JFG5T1 | 5-Valve Manifold (Threaded) | 五阀组 (螺纹式) |
Other configurations and special materials available upon request. 其他配置和特殊材料可按需定制。
Product Description
产品描述
The HTG-JFG series instrument manifolds provide compact, integrated valve solutions for differential pressure transmitters, pressure gauges, and multi-variable instruments. Available in 2-valve (block & bleed), 3-valve, and 5-valve configurations, these manifolds reduce installation footprint, eliminate multiple fittings, and minimize potential leak points. Direct-mount flange patterns match all major transmitter brands.
The HTG-JFG series instrument manifolds provide compact, integrated valve solutions for differential pressure transmitters, pressure gauges, and multi-variable instruments. Available in 2-valve (block & bleed), 3-valve, and 5-valve configurations, these manifolds reduce installation footprint, eliminate multiple fittings, and minimize potential leak points. Direct-mount flange patterns match all major transmitter brands.
Key Features
主要特点
- 2-valve, 3-valve, and 5-valve standard configurations
- Direct-mount flange patterns compatible with Rosemount, Yokogawa, E+H, ABB
- Forged body construction for structural integrity
- Bonnet-lock plate prevents inadvertent disassembly
- Soft seat and metal seat options for varied service
- Integral vent/drain ports for safe pressure release
- 2-valve, 3-valve, and 5-valve standard configurations
- Direct-mount flange patterns compatible with Rosemount, Yokogawa, E+H, ABB
- Forged body construction for structural integrity
- Bonnet-lock plate prevents inadvertent disassembly
- Soft seat and metal seat options for varied service
- Integral vent/drain ports for safe pressure release
Typical Applications
典型应用
- Differential pressure flow measurement
- Level transmitter installations
- Pressure transmitter block & bleed
- Multi-variable instrument valving
- Safety instrumented system (SIS) valve blocks
- Differential pressure flow measurement
- Level transmitter installations
- Pressure transmitter block & bleed
- Multi-variable instrument valving
- Safety instrumented system (SIS) valve blocks
Available Materials
可选材料
Technical Specifications
技术规格
| Model Series | 型号系列 | HTF-JFG |
| Size Range | 尺寸范围 | 1/2" NPT process connections standard; custom on request |
| Pressure Rating | 压力等级 | Up to 6,000 psi (414 bar) |
| Temperature Range | 温度范围 | -65°F to 1000°F (-54°C to 538°C) |
| Materials | 材料 | 316 Stainless Steel, 304 Stainless Steel, Alloy 400, Duplex 2205 |
| Category | 类别 | Manifolds & VesselsManifolds & Vessels |
