Cryogenic Globe Valve低温截止阀
低温截止阀Cryogenic Globe Valve
Eight configurations of needle valves, angle valves, cryogenic globe valves (including vacuum-jacketed), liquid level gauge main valves, and excess flow valves for LNG, liquid nitrogen, and other low-temperature applications.Eight configurations of needle valves, angle valves, cryogenic globe valves (including vacuum-jacketed), liquid level gauge main valves, and excess flow valves for LNG, liquid nitrogen, and other low-temperature applications.
Available Configurations
可选型号配置
| Image | 图片 | Model Code | 型号代码 | Type | 类型 | Description | 说明 |
|---|---|---|---|---|---|---|---|
 | JDW1-CH | Needle Valve | 针型阀 | ||||
 | JDW2-CHT | Angle Pattern Globe Valve | 角式截止阀 | ||||
 | JDW1-F | Needle Valve | 针型阀 | ||||
 | JDW-YB | Needle Valve Angle Type | 角式针型阀 | ||||
 | JDW2-CH | Needle Valve Angle Type | 角式针型阀 | ||||

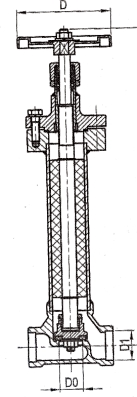

 | JDW-L | Cryogenic Globe Valve Vacuum Jacketed | 真空夹套低温截止阀 | ||||

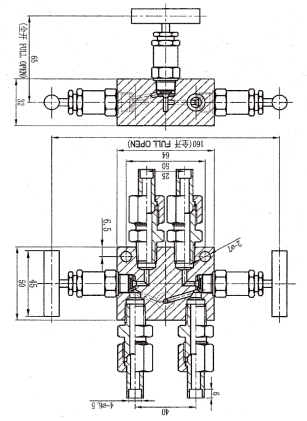

 | JDW-Y | Liquid Level Gauge Main Valve | 液位计主阀 | ||||

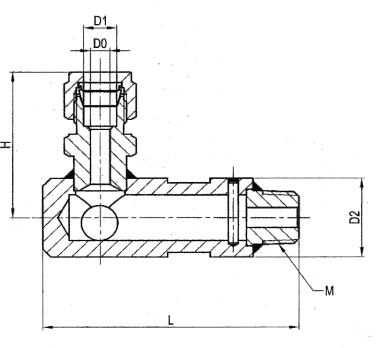

 | JDW-E | Excess Flow Valve | 过流阀 |
Other configurations and special materials available upon request. 其他配置和特殊材料可按需定制。
Product Description
产品描述
The HTF-JDW series includes eight valve configurations for cryogenic and industrial gas service: needle valves (JDW1-CH, JDW1-F), angle pattern globe valves (JDW2-CHT), needle valve angle types (JDW-YB, JDW2-CH), vacuum-jacketed cryogenic globe valves (JDW-L), liquid level gauge main valves (JDW-Y), and excess flow valves (JDW-E). The cryogenic models feature an extended bonnet design that positions the packing and actuator above the insulation line, preventing stem frosting and packing freeze-up in cryogenic service. Manufactured from austenitic stainless steels with specialized low-temperature testing, these valves are suitable for LNG (-260°F), liquid nitrogen (-320°F), liquid oxygen, and other cryogenic fluids. Nominal pressures range from 4.0MPa to 40MPa across the series.
The HTF-JDW series includes eight valve configurations for cryogenic and industrial gas service: needle valves (JDW1-CH, JDW1-F), angle pattern globe valves (JDW2-CHT), needle valve angle types (JDW-YB, JDW2-CH), vacuum-jacketed cryogenic globe valves (JDW-L), liquid level gauge main valves (JDW-Y), and excess flow valves (JDW-E). The cryogenic models feature an extended bonnet design that positions the packing and actuator above the insulation line, preventing stem frosting and packing freeze-up in cryogenic service. Manufactured from austenitic stainless steels with specialized low-temperature testing, these valves are suitable for LNG (-260°F), liquid nitrogen (-320°F), liquid oxygen, and other cryogenic fluids. Nominal pressures range from 4.0MPa to 40MPa across the series.
Key Features
主要特点
- Eight distinct valve configurations for cryogenic and industrial gas applications
- Extended bonnet for packing isolation from cryogenic temperatures (JDW-L, JDW-Y, JDW-E)
- Vacuum-jacketed design for superior thermal insulation (JDW-L)
- Fully austenitic stainless steel construction for low-temperature toughness
- Cryogenic-tested to BS 6364 and ISO 28921 standards
- Anti-static stem-to-body conductivity
- Specialized cryogenic packing and gasket materials (PCTFE main sealing on vacuum-jacketed model)
- Excess flow protection with automatic shut-off (JDW-E)
- Eight distinct valve configurations for cryogenic and industrial gas applications
- Extended bonnet for packing isolation from cryogenic temperatures (JDW-L, JDW-Y, JDW-E)
- Vacuum-jacketed design for superior thermal insulation (JDW-L)
- Fully austenitic stainless steel construction for low-temperature toughness
- Cryogenic-tested to BS 6364 and ISO 28921 standards
- Anti-static stem-to-body conductivity
- Specialized cryogenic packing and gasket materials (PCTFE main sealing on vacuum-jacketed model)
- Excess flow protection with automatic shut-off (JDW-E)
Typical Applications
典型应用
- LNG liquefaction and regasification
- Industrial gas production (N₂, O₂, Ar)
- Cryogenic storage and transport
- Aerospace propellant handling
- Superconducting equipment cooling systems
- LNG liquefaction and regasification
- Industrial gas production (N₂, O₂, Ar)
- Cryogenic storage and transport
- Aerospace propellant handling
- Superconducting equipment cooling systems
Available Materials
可选材料
Technical Specifications
技术规格
| Model Series | 型号系列 | HTF-JDW |
| Size Range | 尺寸范围 | 1/2" – 4" (15mm – 100mm) |
| Pressure Rating | 压力等级 | 4.0MPa – 40MPa (40 bar – 400 bar) |
| Temperature Range | 温度范围 | -320°F to 248°F (-196°C to 120°C) |
| Materials | 材料 | 316/316L Stainless Steel, 304/304L Stainless Steel, F316, 0Cr18Ni9, 2Cr13, PCTFE (cryogenic sealing) |
| Category | 类别 | ValvesValves |
