One-piece Instrument Ball Valve一体式仪表球阀
一体式仪表球阀One-piece Instrument Ball Valve
Compact one-piece body ball valves for instrument isolation and switching with quarter-turn operation.Compact one-piece body ball valves for instrument isolation and switching with quarter-turn operation.
Available Configurations
可选型号配置
| Image | 图片 | Model Code | 型号代码 | Type | 类型 | Description | 说明 |
|---|---|---|---|---|---|---|---|

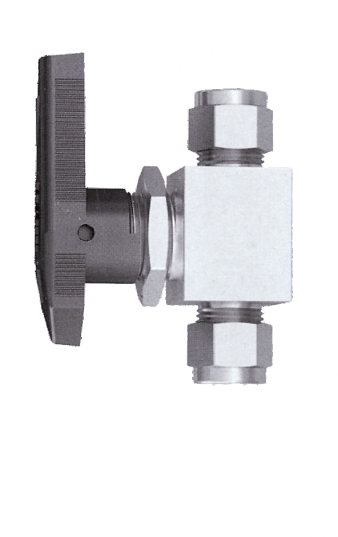

 | QZT1-SK | Two-way valve with ferrule | 直通卡套球阀 | ||||
 | QZT1-LWF | Two-way female valve | 直通内螺纹球阀 | ||||
 | QZT1-SKF | Two-way female valve with ferrule | 直通卡套内螺纹球阀 | ||||
 | QZT1-FM | Two-way female-male valve | 直通内外螺纹球阀 | ||||
 | QZT2-SK | Two-way angle-type valve with ferrule | 角式卡套球阀 | ||||
 | QZT2-LWF | Two-way angle-type female valve | 角式内螺纹球阀 | ||||
 | QZT2-SKM | Two-way angle-type male valve with ferrule | 角式卡套外螺纹球阀 | ||||
 | QZT2-FM | Two-way angle-type female-male valve | 角式内外螺纹球阀 | ||||
 | QZT3-SK | Three-way changeover valve with ferrule | 三通切换卡套球阀 | ||||
 | QZT3-LWF | Three-way changeover female valve | 三通切换内螺纹球阀 | ||||
 | QZT4-SK | Four-way overlap changeover valve | 四通旋转卡套球阀 | ||||
 | QZT6-SK | Six-way overlap changeover valve | 六通旋转卡套球阀 | ||||
 | QZT5-SK | Five-way changeover valve | 五通切换卡套球阀 | ||||
 | QZT7-SK | Seven-way changeover valve | 七通切换卡套球阀 |
Other configurations and special materials available upon request. 其他配置和特殊材料可按需定制。
Product Description
产品描述
The HTG-QZT series one-piece instrument ball valves provide reliable on/off isolation for instrument lines with compact dimensions ideal for dense manifold installations. The single-piece body construction eliminates body joint leak paths while the floating ball design ensures positive sealing in both directions. Quarter-turn operation enables quick isolation for maintenance, calibration, or emergency shutdown.
The HTG-QZT series one-piece instrument ball valves provide reliable on/off isolation for instrument lines with compact dimensions ideal for dense manifold installations. The single-piece body construction eliminates body joint leak paths while the floating ball design ensures positive sealing in both directions. Quarter-turn operation enables quick isolation for maintenance, calibration, or emergency shutdown.
Key Features
主要特点
- One-piece body design eliminates body joint leak paths
- Quarter-turn operation with visual position indication
- Floating ball with spring-loaded seats for bi-directional sealing
- Blow-out proof stem with anti-static device
- Available in reduced and full bore configurations
- Locking handle option for tamper resistance
- One-piece body design eliminates body joint leak paths
- Quarter-turn operation with visual position indication
- Floating ball with spring-loaded seats for bi-directional sealing
- Blow-out proof stem with anti-static device
- Available in reduced and full bore configurations
- Locking handle option for tamper resistance
Typical Applications
典型应用
- Instrument isolation for calibration and maintenance
- Gauge and transmitter block valves
- Sample system flow switching
- Chemical injection line isolation
- Pneumatic signal line switching
- Instrument isolation for calibration and maintenance
- Gauge and transmitter block valves
- Sample system flow switching
- Chemical injection line isolation
- Pneumatic signal line switching
Available Materials
可选材料
Technical Specifications
技术规格
| Model Series | 型号系列 | HTF-QZT |
| Size Range | 尺寸范围 | 1/8" – 1" NPT / 3mm – 25mm tube |
| Pressure Rating | 压力等级 | Up to 6,000 psi (414 bar) |
| Temperature Range | 温度范围 | -20°F to 450°F (-29°C to 232°C) with PTFE seats |
| Materials | 材料 | 316 Stainless Steel, 304 Stainless Steel, Brass, Alloy 400 |
| Category | 类别 | ValvesValves |
